It’s all about water
Managing water volumes. Preventing water pollution. Restoring water quality. No matter how large or small the project, creating the most efficient long-term system takes working with the right partners.
You deserve custom, site-specific, highly engineered designs to make sure you are using the best products for your project.
Storage & Infiltration Products
|
Product Properties
|
M-6 Chamber
 |
C-10 Chamber
 |
S-22 Chamber
 |
S-29B Chamber
 |
Vault
 |
Aquamod
 |
|---|---|---|---|---|---|---|
|
Nominal dimensions
(layup length x
width x height)
|
29.58" x 33.61" x 17.5"
(751 mm x 854 mm x 445 mm) |
29.58" x 39.70" x 25.00"
(751 mm x 1008 mm x 635 mm) |
27.66” x 55.00” x 35.00”
(703mm x 1397mm x 889mm) |
33.35" x 61.76" x 37.27"
(847 mm x 1569 mm x 947 mm) |
41.28" x 41.28" x 36.00"
(1049 mm x 1049 mm x 914 mm) |
39.37" x 39.37" x 19.69"
(1000 mm x 1000 mm x 500 mm) |
|
Bare chamber
storage
|
5.6 ft³
(0.159 m³) |
9.8 ft³
(0.277 m³) |
21.57ft³
(0.511 m³) |
27.8 ft³
(0.787 m³) |
28.79 ft³
(0.815 m³) |
16.95 ft³
(0.48 m³) |
|
Minimum installed storage¹
|
11.36 ft³
(0.322 m³) |
17.45 ft³
(0.494 m³) |
31.30 ft³
(0.886 m³) |
42.07 ft³
(1.191 m³) |
42.13 ft³
(1.193 m³) |
16.95 ft³
(0.48 m³) |
|
Product weight
|
14 lbs
(6.35 kg) |
18 lbs
(8.17 kg) |
28 lbs
(12.701 kg) |
34 lbs
(15.42 kg) |
50 lbs
(22.70 kg) |
44 lbs
(20 kg) |
|
Stone above (minimum)
|
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
12 in
(304 mm) |
4 in
(100 mm) |
|
Stone below (minimum)
|
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
4 in
(100 mm) |
|
Minimum cover depth²
|
18 in
(457 mm) |
18 in
(457 mm) |
18 in
(457 mm) |
14 ft
(356 mm) |
18 in
(457 mm) |
19 in
(482 mm) |
|
Maximum cover depth³
|
13 ft
(3.96 m) |
13 ft
(3.96 m) |
13 ft
(3.96 m) |
14 ft
(4.267 m) |
13 ft
(3.96 m) |
19.7 ft
(6 m) |
|
¹ With minimum stone depth above and below, and 40% stone porosity.
² Minimum cover of the Aquamod can be reduced to 12 in (0.3 m) for some installations. Contact Xerxes for details. ³ Maximum cover of Aquamod varies with the number of layers. The maximum module base of the bottom layer to grade is stated in table. |
||||||
|
|
||||||
Water Quality Products

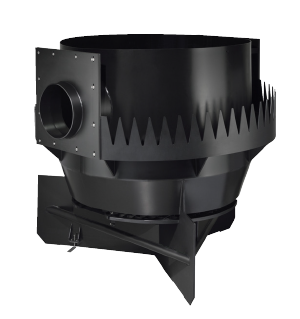

Prime Separator

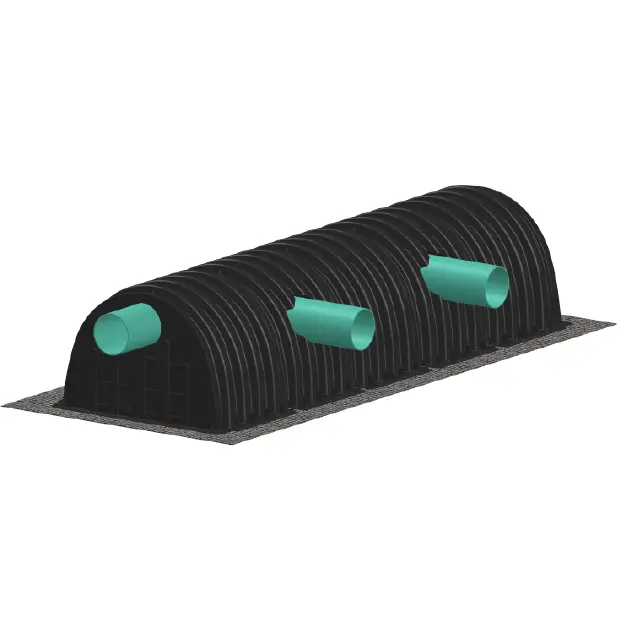

Main Header Row (MHR)

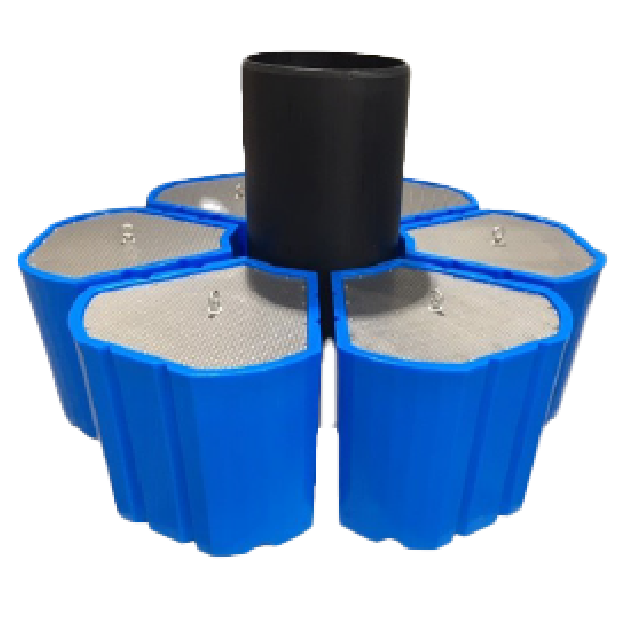

Vortex Filter
The HydroChain water quality products provide solutions for a wide spectrum of pollution removal, including:
Total suspended solids (TSS)
Trash and debris
Total petroleum hydrocarbons
Total heavy metals
Total phosphorus
Total nitrogen
Experience the value of working with expert engineers

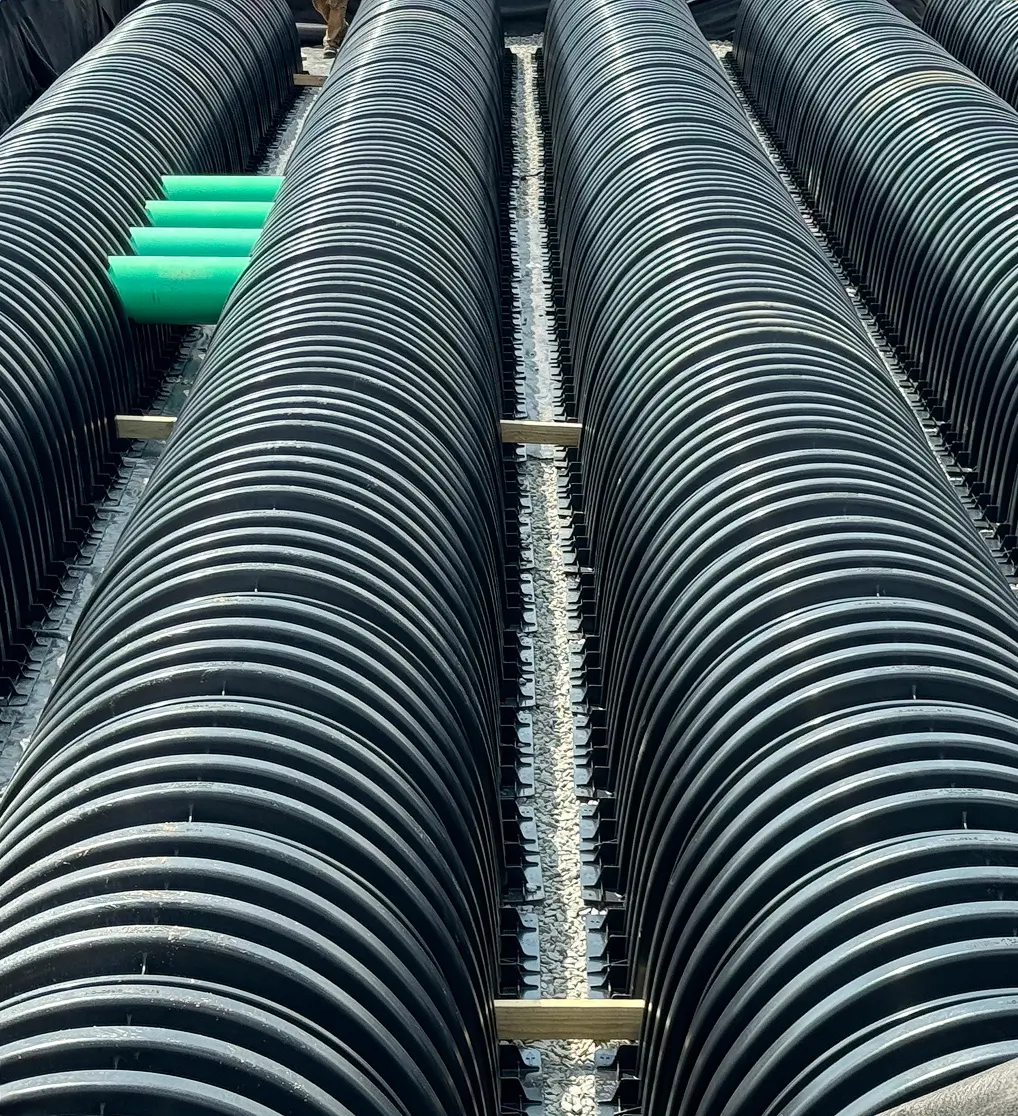

Stormwater Chamber Success Story
Xerxes Facility - Blythewood, SC
Using our own Stormwater Products at our New Tank Facility
In planning our new Xerxes tank manufacturing facility in Blythewood, South Carolina, it was clear that the site required a stormwater retention/detention system.
Runoff is a major cause of water pollution today. Replacing natural ground cover with nonporous surfaces adds to the already critical need to both manage stormwater and mitigate damage caused by contaminants in runoff.
Xerxes is in the business of creating secure, long-term underground solutions. So, even if it wasn’t required, we know that working to protect our precious water resources is the right thing to do.
